DF 2000/2400/2500/3000 JOLLY
Monowire
DF 2000/2400/2500/3000 JOLLY

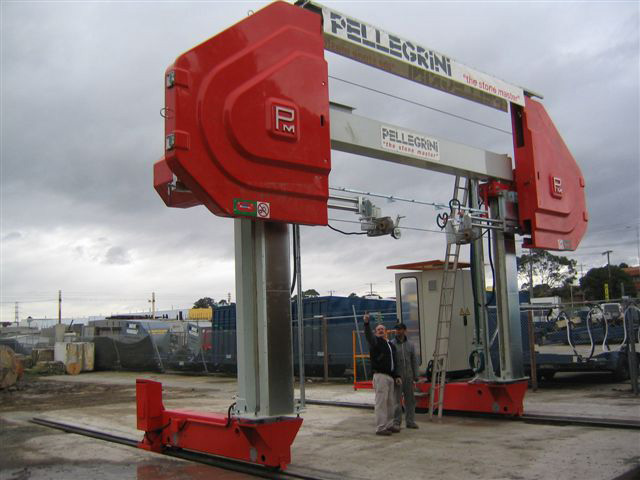

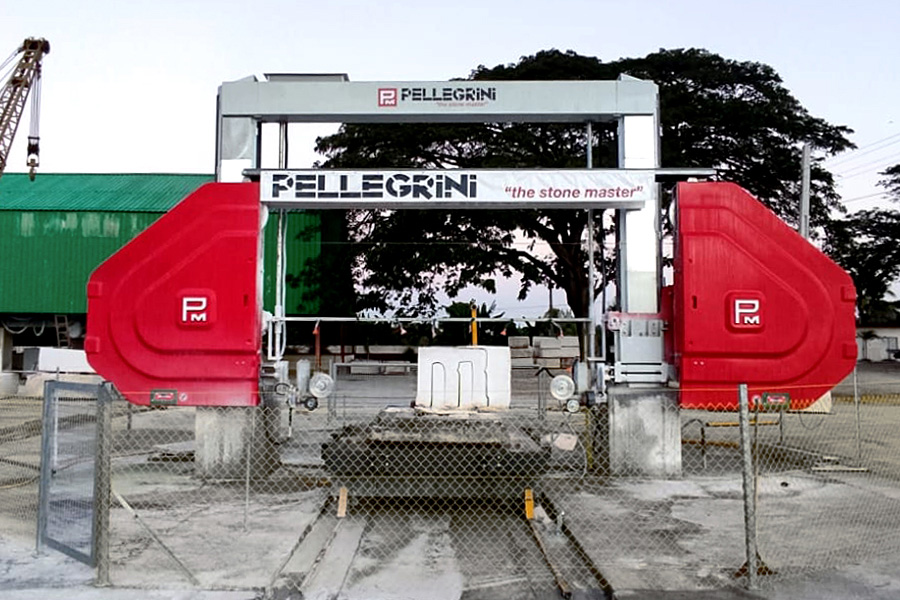

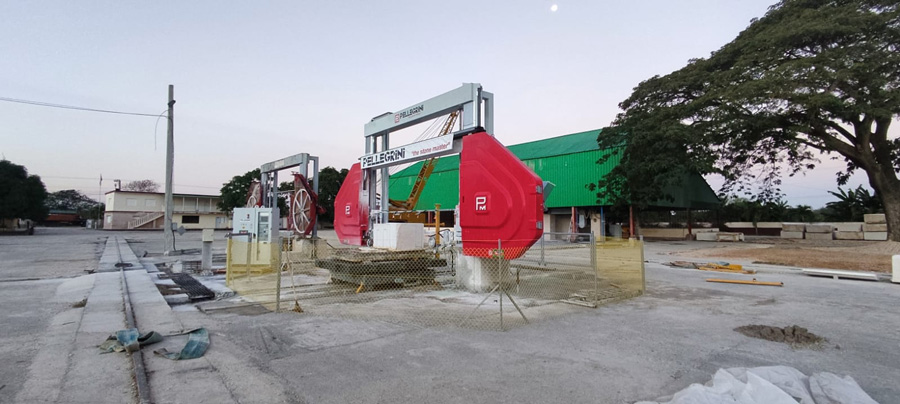

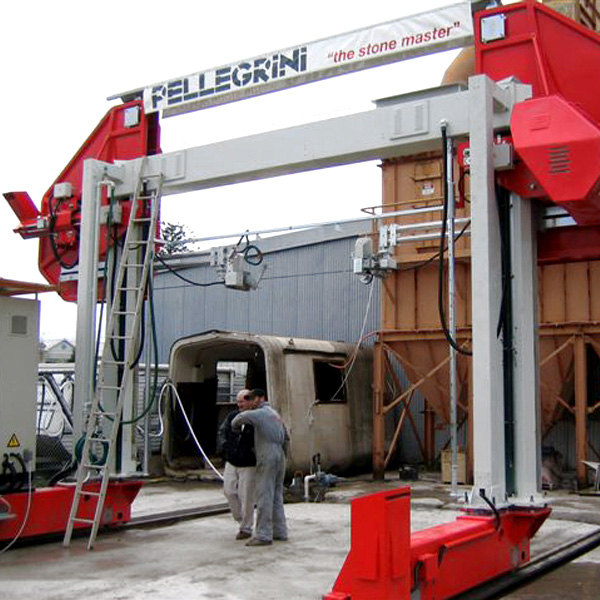

Monowire gangsaw for block squaring, slab cutting (vertical and horizontal), and two-dimensional profiling equipped with electronic tensioning, Inverter for wire rotation speed management and 4 axes managed by the CNC (PC + PLC), built into the control panel, for machine operator control.
Contact us for more technical information.
SCROLL
Key highlights
- Extremely rigid metal structure with high durability
- Two large diameter flywheels (2000 mm or 2500 mm) for high diamond wire life performance
- Two CNC-controlled wire guide wheel assemblies for high cutting precision
- Depending on the version, maximum cutting heights of 2000 mm, 2400 mm, 2500 mm, 3000 mm can be achieved.
- Electronic tensioning guarantees reliability and cutting precision
- Two-dimensional shaping by importing drawings in DXF and DWG format
- In the JOLLY ROLLER version, it offers the possibility of programming multiple cuts on several blocks, guaranteeing a high production output and consequent reduction in downtime
